V10L

V10L

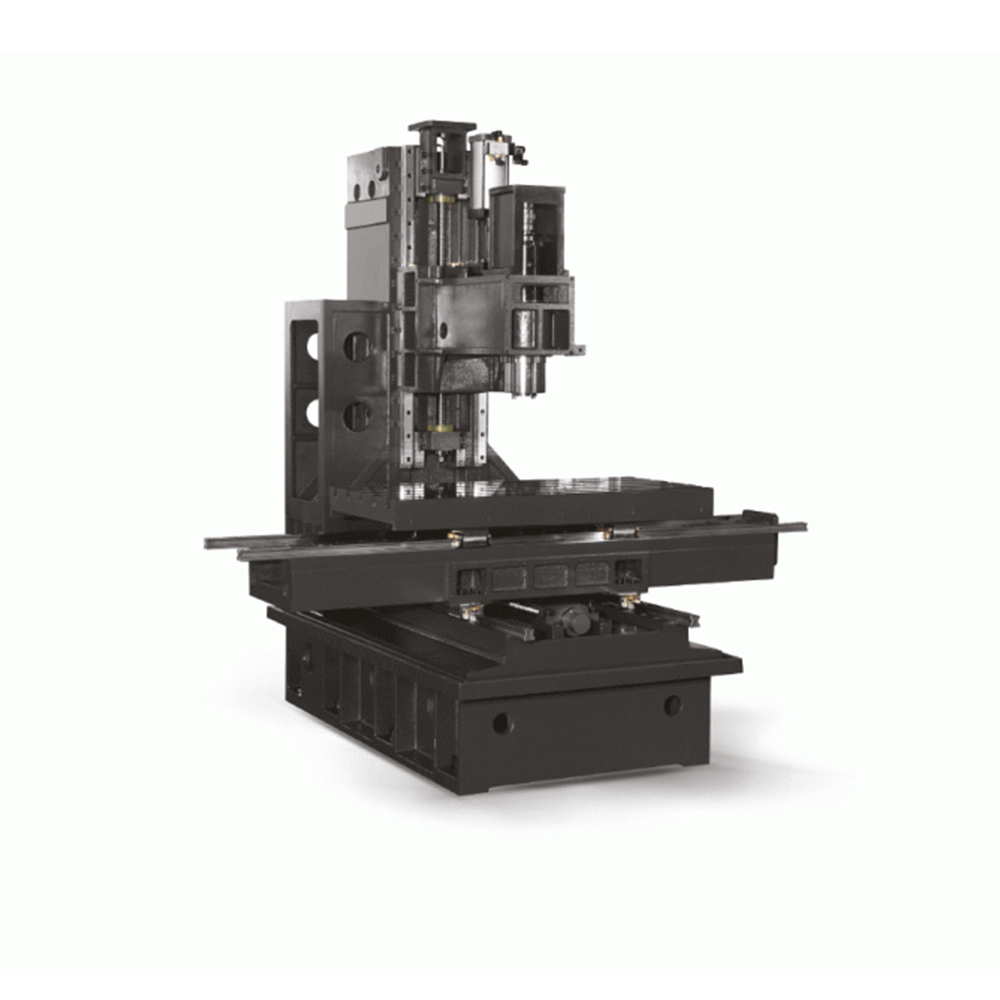

The Priminer V10L CNC Machining Center offers large machining capacity, high precision, and a robust structure to maximize industrial efficiency. With a spacious working area, a powerful spindle motor, and an automatic tool changer, it is ideal for aerospace, automotive, mold manufacturing, and metalworking industries.

Industry 4.0 compatibility allows seamless integration into digital production systems and remote monitoring. High-precision surface finishing and efficient chip removal ensure superior quality and stability.

V10L V10L
  • Technical Specifications
  • Get Offer
Control Unit (Standard / Optional)     Mitsubishi / Fanuc / Siemens
Table Size     1100×500mm
Table T Channel (Piece x No x Distance) 18x5x100mm
Maximum Workpiece Weight 600 kg
X/Y/Z Table Tour 1020/520/550mm
Distance Between Spindle Nose and Table 115–675mm
Spindle Type and Diameter BT40 / 120mm
Spindle Servo Motor 7.5/15kW
Spindle Speed 10,000rpm
X-Axis Motor Power and Torque     2kW/13.7NM/4000rpm
Y Axis Motor Power and Torque     2kW/13.7NM/4000rpm
Z Axis Motor Power and Torque     3kW/22NM/3000rpm
Maximum Tool Diameter     Ø78mm
Maximum Tool Length     300mm
Maximum Tool Weight     8kgs
Tool Change Time (Lever Type)     1.6 sec
Rapid Feed Rate X/Y/Z     30 mt/min (mt/min)
Cutting Speed ​​     12 mt/min (mt/min)
X Axis Ball Screw Diameter and Pitch      Ø36mm and 16mm
Y Axis Ball Screw Diameter and Pitch     Ø36mm and 16mm
Z Axis Ball Screw Diameter and Pitch  Ø36mm and 16mm
X/Y/Z Axis Bearing Block Count     4/4/4
X/Y/Z Linear Bearing Width     35/35/35mm
Machine Size     3870 / 2175 / 2850mm
Weight     5000kg
